What is IPM power module, features and applications

"Power module" alludes to the presence of a power exchanging part (normally an IGBT), and the module is "wise" since it incorporates extra control and security hardware. The objective is to upgrade execution and make the general arrangement more straightforward to plan and carry out.

Essentially, a canny power module is supposed to be a coordinated power supply gadget that consolidates the computerized "knowledge" given by a chip. It's vital to perceive that as per standard utilization in the business, an IPM is a high level, exceptionally coordinated strong state power switch.

Power Semiconductor Correlation

For a great conversation of semiconductor gadgets utilized for high-power exchanging, investigate FET versus BJT versus IGBT: What's the Ideal Decision for Your Power Stage Plan?

Features of IPM

Improved high-power exchanging is significantly more than simply turning a FET or IGBT on and off. The accompanying rundown conveys the highlights that may be integrated into a power-exchanging application, and it likewise conveys the elements that we track down in wise power modules.

Entryway drive hardware should apply the appropriate voltage and supply a lot of current for quick exchanging.

Door drive rationale can likewise be intended to forestall high-side and low-side IGBTs from leading all the while. This usefulness goes by a couple names: shoot-through insurance, cross-conduction counteraction, or interlock hardware.

Insurance hardware ought to have the option to identify and address overcurrent, over temperature, hamper, under voltage conditions. Assuming the framework needs to track issue occasions or functional temperatures, some kind of correspondence usefulness will likewise be required.

EMI particulars might require specific exchanging conduct.

Space or cost limitations could oblige a planner to decrease power misfortunes that happen during exchanging and on-state conduction so a more modest intensity sink or nook can be utilized.

A few applications require power factor rectification (PFC).

Essentially, IPM producers attempt to coordinate any element or usefulness that they can to upgrade the exhibition, increment the manufacturability, bring down the expense, decrease the size, work on the dependability, improve on the execution, or speed up an opportunity to market of a semiconductor-based power-exchanging circuit.

Voltage Particulars

Savvy power modules are coordinated fundamentally at the high-voltage market.

For instance, the most minimal greatest voltage rating in Infineon's CIPOS Nano family is 40 V. The most noteworthy is 600 V, and the Nano line is the littlest, least power choice in Infineon's arrangement. The Maxi family endures voltages up to 1200 V and can scatter 50 W of force for every IGBT.

As another model, Powerex utilizes the expression "low power" to depict IPMs that are indicated at 50 An and 600 V. The more powerful modules can deal with 75 A.

Structure Component

Keen power modules will quite often come in through-opening bundles that we would depict as to some degree nonstandard. Here are a few models:

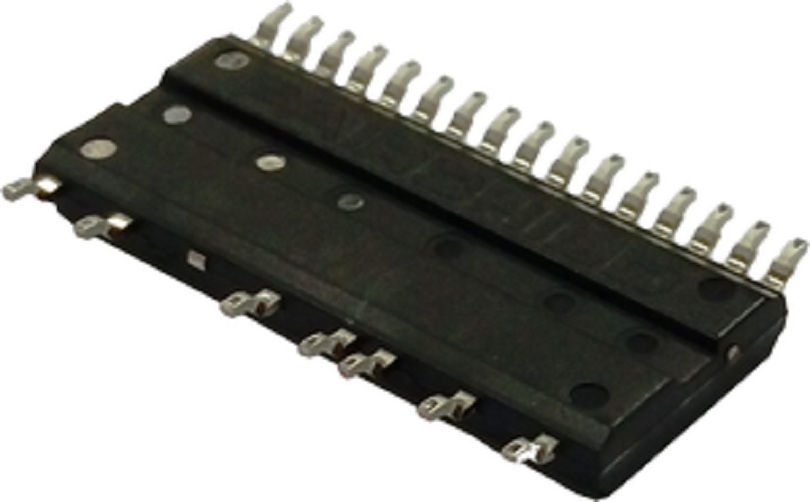

This is a delivering of the FNB81060T3 (referenced previously).

PFC-Incorporated IPM For Low-Power Gadget

Applications

Clever power modules are generally firmly connected with engine control, but at the same time they're utilized in uninterruptible power supplies, inverters, and environmentally friendly power frameworks. The rundown underneath shows a portion of the expected applications referenced by makers.

Home apparatuses: fans, air purifiers, clothes washers, forced air systems, fridges, vacuum cleaners

Modern: siphons, blowers, central air, lifts

Car: AC blowers, oil siphons, on-board charging in electric vehicles
